Roll Forming Machine and Automatic Assembly Machine
Chin Minn slide manufacturing equipment makes slide manufacturing EASY, FAST and ACCURATE.
Home » Products » Steel Ball Slide » 36mm/45mm Slide
Steel Ball Slide Manufacturing Equipment
36mm/45mm Slide

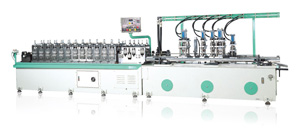

Roll Forming Machine
Inner Rail
Electrical
Plating
Inner Rail
Roll Forming Machine
Middle Rail
Electrical
Plating
Middle Rail
Roll Forming Machine
Outer Rail
Electrical
Plating
Outer Rail

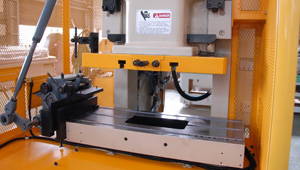

Stamping Press
Ball Cage
Steel Ball
Plastic Strip
Outer Stopper
Guide Block
Latch
Rivet
Inner Rail Assembly Machine
Assembly Machine
Drawer Slides
Ball Slide Specification
Specification Name of Member Profile No. of Roller
Forming Stands		 Material
Thickness		 Model
17mm Inner 12 1.0 50
Outer 12 1.0 50
27mm Inner 12 1.2 50
Outer 12 1.2 50
35mm Inner 12 1.5 50
Outer 12 1.5 50
36mm Inner 12 1.2 50
Middle 16 1.2 50
Outer 12 1.2 50
45mm Inner 12 1.5 50
Middle 16 1.2 60
Outer 12 1.2 60
53mm Inner 12 1.8 60
Middle 24 1.8 60
Outer 12 2.0 60
58mm Inner 12 2.0 60
Middle 16 1.8 60
Outer 12 1.8 60
71mm Inner 12 2.0 60
Middle 24 1.8 60
Outer 12 2.0 60
Under
Mount		 Inner 19 1.8 60
Middle 14 1.4 50
Outer 26 2.0 60
  • Other Slide Rails
