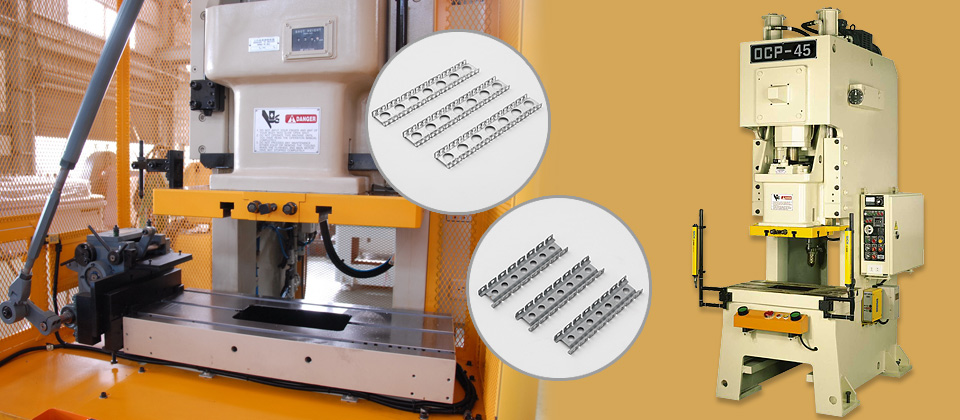

Stamping Press
Model : OCP-45
The press with progressive die will be used to stamp ball cages. Number of pitch and stroke can be adjusted as required.
Stamping Press for Ball cage
Description

The press with progressive die will be used to stamp ball cages.

Number of pitch and stroke can be adjusted as required.

Specification
Model   OCP-45 OCP-60
Type Unit S H L S H L
Capacity Tons 45 60
Rated tonnage point mm 3.2 2.3 3.2 4 2.3 4
Stroke length mm 70 50 110 80 50 130
Stroke per min. Fixed     70     60
  Variable 60-120 80-160 50-85 55-110 70-150 40-75
Die height mm 290 300 270 325 340 300
Slide area mm 430 x 350 500 x 400
Bolster area mm 850 x 440 900 x 520
Bolster thickness mm 90 90
Slide adjustment mm 60 70
Main Motor HP x P 7.5 HP x 4P 7.5 HP x 4P
Slide adjusting motor HP x P Manual 0.5 HP x 4P
Working height mm 800 800
Slide plate Thickness mm 60 70
Max. top die weight Kg 300 300
Die Cushion
Capacity ton 2.6 3.6
Pad Area mm 335 x 230 350 x235
Stroke mm 60 70
